Suzue 15mm to 12mm Thru-Axle Converter, Length 130mm, Niner, Kona, Whisky #9

https://www.merrysales.com//web/image/product.template/7663/image_1920?unique=7e8dff6

49.95 49.95 USD 49.95

0.00

    This combination does not exist.

    FOR RETAIL BUSINESSES ONLY
    SIGN IN to your Account to Place Order or View Wholesale Pricing

    • Out-of-stock items cannot be Added to Cart
     Call or e-mail regarding re-stocks
    • View our Shipping Terms

    Fork Thru Axle Conversion Kit for carbon forks on many bike models including:

    Niner w/ 125mm axle (BSB, RLT, RDO)
    GT Grade
    Jamis (all)
    Kona Roadhouse, Private Jake, and Jake the Snake
    Norco Search and Threshold
    Felt (all)
    Raleigh Roker, Tamland, RXM, and RXC Pro
    Otso Waheela (w/Lithic Hiili fork)
    Whisky #9 fork
    All City Cosmic Stallion (w/ Whisky #9 fork)
    Foundry Overland (w/ Whisky #9 fork)
    Lynskey PRO CX and PRO Road forks (not PRO GR)
    Litespeed T5 Gravel
    Advocate Lorax (w/ Otso Lithic Hiili fork)
    Bombtrack Hook 3
    Genesis Datum
    Dolan DR1
    Carbonda CFR505
    Hoy Alto Irpavi
    Rose Backroad and Xeon
    Principia
    Prologue
    Rapide
    Tomac Mesa Verde
    Alan Super Gravel
    Blue Norcross and ProSecco
    PlanetX/On One Bish Bash Bosh
    Saracen Avro
    Viner Super Prestige
    Bottecchia T2 Doppia Corsa
    Kindhuman Kudu
    Opus Allegro

    Pride ROCX Tour LT.

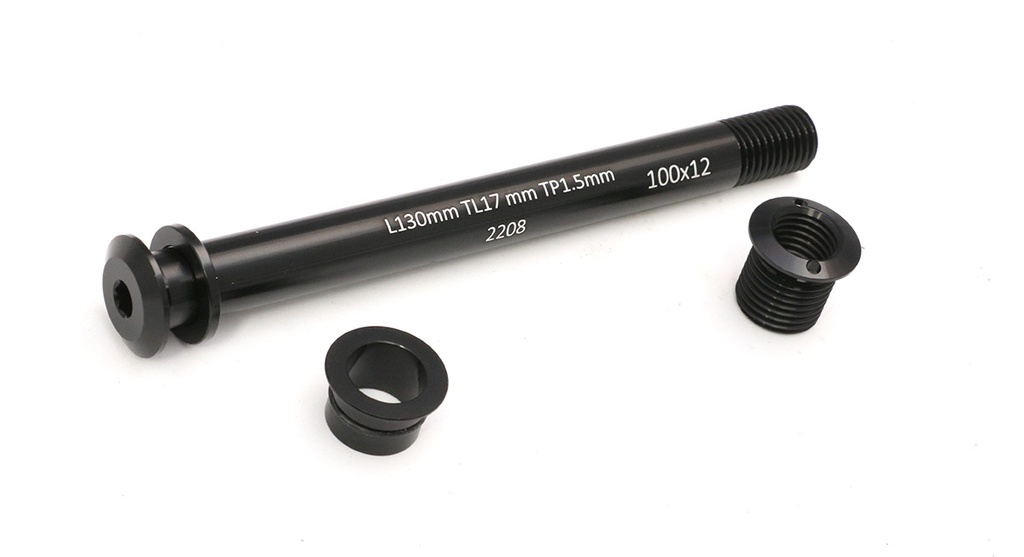

    Converts fork from 15mm to 12mm Thru Axle allowing use of a wide range of hubs and wheels previously incompatible. Kit includes one each:



    • M12x1.5mm threaded insert (replaces original)

    • 10mm long thru hole insert

    • 12mm x 130mm long thru axle, M12x1.5mm threads



    Installation Notes:

    1. Use either grease or low-strength threadlocker on thread adapter

    2. Use Park Tool SPA-2 or equivalent 2.3mm pin spanner to tighten thread adapter into fork. Flange goes on the OUTSIDE (see third picture).

    3. Use grease on o-ring of thru hole insert and install into fork from the outside with a combined pushing and twisting motion. Do NOT use thru axle to drive thru hole insert into the fork.

    4. Use grease on threads of thru axle. Torque 9 - 13.5 N*m using 5mm hex key.
