Suzue 15mm to 12mm Thru-Axle Converter , Length 152mm, Soma Wolverine Unicrown Fork V1 / MTB Fork

https://www.merrysales.com//web/image/product.template/7667/image_1920?unique=e582e25

    49.95 49.95 49.95 USD

    0.00

    This combination does not exist.

    Add to Cart


    • SIGN IN to your Account to Place Order or View Wholesale Pricing
    • Out-of-stock items cannot be Added to Cart
     Call or e-mail regarding re-stocks
    • View our Shipping Terms

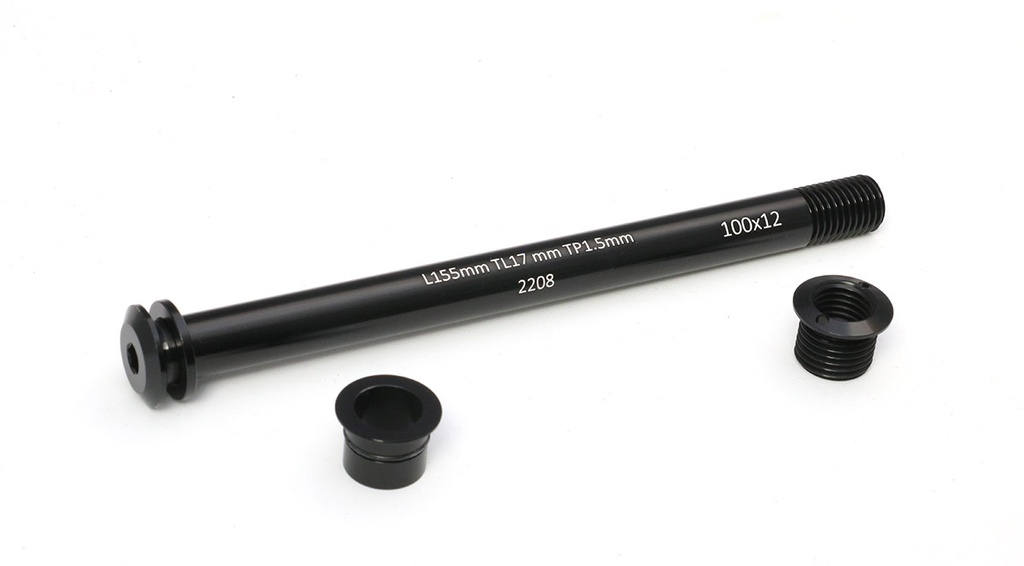

    15mm to 12mm thru-axle converter kit for the version 1 unicrown fork for the Soma Wolverine frame (Will not fit the version 2 or 3 which use a shorter axle.) and also for the Soma MTB Thru-Axle rigid fork.

    • Length: 152mm
    • Thread pitch: 1.5mm
    • Thread length: 17mm

    • Thread adapter: M15x1.5mm pitch external thread, 24mm long, M12x1.5mm internal thread
    • Thru Hole Insert: 15mm OD x 12mm ID, 24mm long
    • Axle: 12mm x 152mm long, M12x1.5mm threads

    Installation Notes:

    1. Use either grease or low-strength threadlocker on thread adapter

    2. Use Park Tool SPA-2 or equivalent 2.3mm pin spanner to tighten thread adapter into fork. Flange goes on the OUTSIDE (see third picture).

    3. Use grease on o-ring of thru hole insert and install into fork from the outside with a combined pushing and twisting motion. Do NOT use thru axle to drive thru hole insert into the fork.

    4. Use grease on threads of thru axle. Torque 9 - 13.5 N*m using 5mm hex key.
