Sturmey Archer Rear Hub S-RF3 36h 3sp Barend shift

https://www.merrysales.com//web/image/product.template/3430/image_1920?unique=b22bc37

    109.99 109.99 109.99000000000001 USD

    0.00

    This combination does not exist.

    Add to Cart


    • SIGN IN to your Account to Place Order or View Wholesale Pricing
    • Out-of-stock items cannot be Added to Cart
     Call or e-mail regarding re-stocks
    • View our Shipping Terms

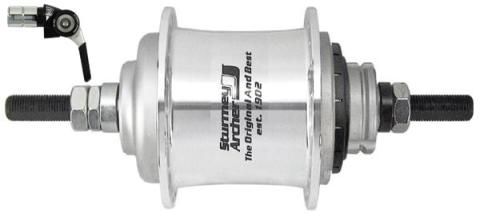

    Sturmey-Archer S-RF3 3-Spd Rear Hub

    • 3 Speed internal gear hub without brake (freewheel)

    • Available with 175mm axle length

    • Classic 3 speed gear ratio of 177%

    • Available now with high polish hub shell

    • Sold with SLS30 R3B Bar End Shifter


    Additional Specs:

    • Hub Shell Material – 6061 Aluminum

    • Axle Diameter – 13/32” Slotted

    • Axle Length – 175.0mm

    • Over Locknut Dimension – 127mm

    • Right Axle Protrusion Length – 24mm

    • Left Axle Protrusion Length – 24mm

    • Spoke Holes – 36

    • Pitch Circle Diameter – 67mm

    • Flange Width – 53mm

    • Spoke Compatibility – 13g or 14g

    • Chain Line: 1/8” Flat 43.1mm

    • Chain Line: 1/8” Dished 41.5mm, 44.9mm

    • Chain Line: 3/32” Flat 42.7mm, 43.5mm

    • Chain Line: 3/32” Dished 41mm, 45mm

    • Indicator Chain – HSA420 Mark 5

    • Weight – 1060g


    Gear Ratio

    • Overall Range – 177%

    • Gear 1 – 75% (-)25%

    • Gear 2 – 100% Direct Drive (Gear 1 + 33%)

    • Gear 3 – 133% (+)33.3% (Gear 2 + 33%)
