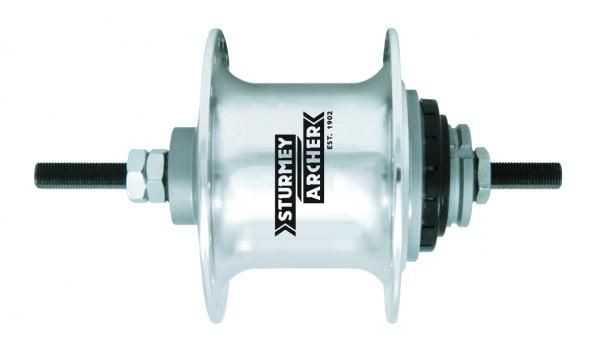

Sturmey Archer Rear Hub X-RF5 36h 5sp twist

https://www.merrysales.com//web/image/product.template/3429/image_1920?unique=b22bc37

    129.99 129.99 129.99 USD

    0.00

    This combination does not exist.

    Add to Cart


    • SIGN IN to your Account to Place Order or View Wholesale Pricing
    • Out-of-stock items cannot be Added to Cart
     Call or e-mail regarding re-stocks
    • View our Shipping Terms

    Older model. (Also look at RX-RF5)

    • Hub Shell Material - 6061 Aluminum

    • Axle Diameter - 13/32” Slotted

    • Axle Length - 175mm

    • Over Locknut Dimension - 119mm

    • Right Axle Protrusion Length - 24mm

    • Left Axle Protrusion Length - 32mm

    • Spoke Holes - 36

    • Pitch Circle Diameter - 67mm

    • Center to Flange Right - 27.6mm

    • Center to Flange Left - 29.0mm

    • Flange Width - 56.6mm

    • Spoke Compatibility - 13g or 14g

    • Sprocket Teeth - 13T through 22T

    • Chain Line: 1/8” Flat 45.6mm

    • Chain Line: 1/8” Dished 44mm, 47.4mm

    • Chain Line: 3/32” Flat 45.3mm, 45.9mm

    • Chain Line: 3/32” Dished 43.5mm, 47.7mm

    • Indicator Chain - HSA585 Mark Yellow / HSA717 Mark Navy Blue (Navy Blue only to be used in conjunction with HMN420 Short Guide Nut)

    • Finish - Anodized Alloy

    • Weight - 1230g


    Gear Ratio

    • Overall Range - 256%

    • Gear 1 - 62.5% (-)37.5%

    • Gear 2 - 75% (-)25% (Gear 1 + 20%)

    • Gear 3 - 100% Direct Drive (Gear 2 + 33%)

    • Gear 4 - 133.3% (+)33.3% (Gear 3 + 33%)

    • Gear 5 - 160% (+)60% (Gear 4 + 20%)
