Soma Frame Jawbone A-Type Sage Green

https://www.merrysales.com//web/image/product.template/5882/image_1920?unique=57ced5f
  • Size

795.95 795.95 795.95 USD

0.00

This combination does not exist.

Add to Cart


• SIGN IN to your Account to Place Order or View Wholesale Pricing
• Out-of-stock items cannot be Added to Cart
 Call or e-mail regarding re-stocks
• View our Shipping Terms

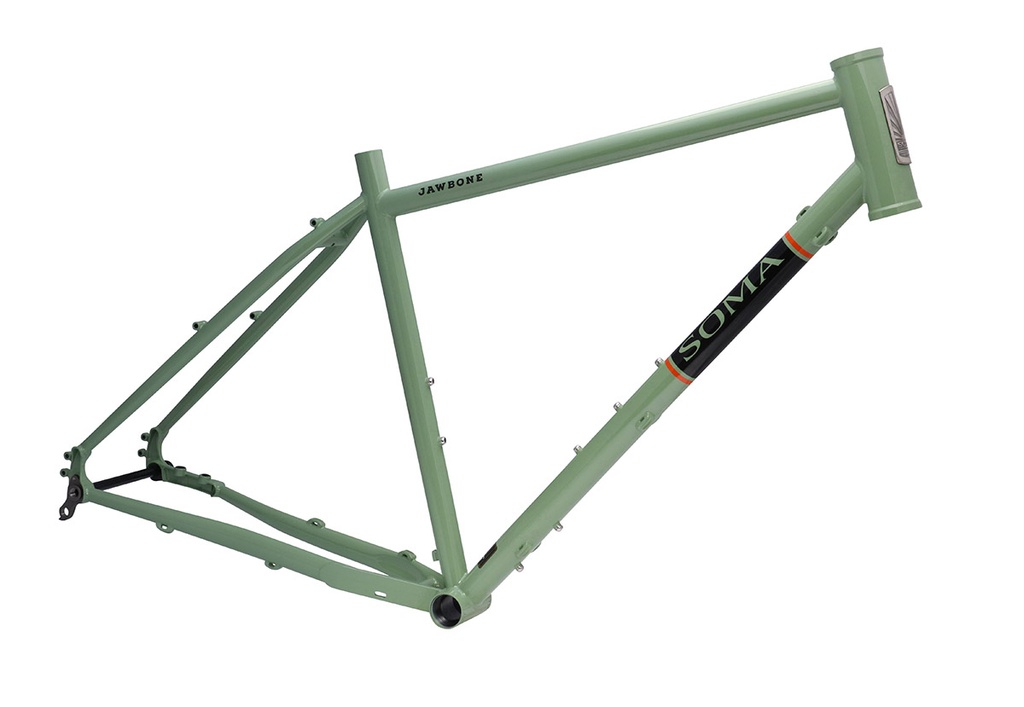

The Jawbone A-Type frame is the perfect platform to build drop bar mountain touring and bike packing rig.
While it is still game for riding gravel and singletrack, it is in its element when packed up for your next adventure.

- Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
- Flat mount disc brake tabs on rear
- Investment cast vertical dropout with replaceable stainless steel hanger. 12 x 142mm thru-axle
- Front derailleur compatible (bottom pull)
- Rear rack and fender eyelets
- Two sets of bottle cage bosses; one set of cargo cage bosses on downtube
- 44mm headtube: Fits 1-1/8" steerer tubes and tapered steerer tubes with a headset swap
- 27.2mm post size/28.6mm frt. der. size/29.8mm seat collar, 73mm bottom bracket (English threads)
- Tire Width Range: 27.5 x 47mm to 2.5” / 700c x 38mm to 29 x 2.25”
- Color: Sage Green
- Sizes: 650b only: 50cm, 52cm / 700c: 54cm, 56cm, 58cm, 61cm, 64cm

Optional Fork Features:
- Tange CrMo steel
- Steve Potts lugged construction
- Axle to Crown: 420mm
- Rake: 50mm
- Investment cast thru-axle dropouts (12mm x 100mm)
- One set of cargo cage bosses per leg, lowest boss can be used for a pannier rack
- IS disc mount

(Additional information on www.somafab.com)
